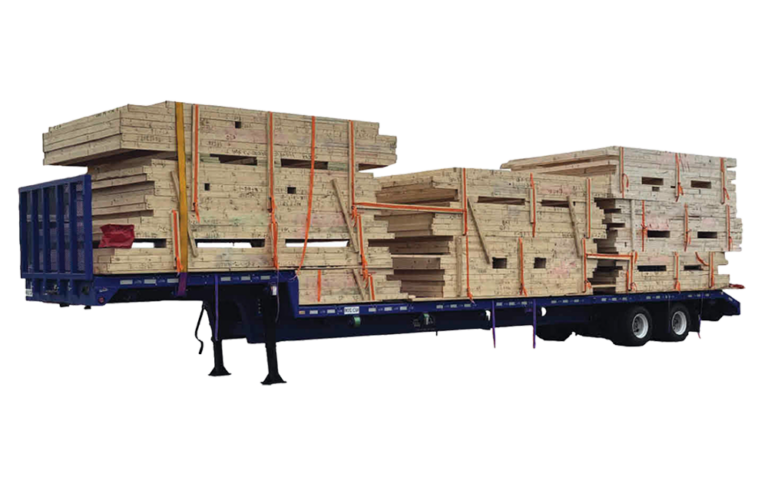

Our 46′ Non-Hydraulic and 48′ Hydraulic Step Deck Trailers are ideal for hauling wall panels and trusses allowing for the maximum available load height.
| Length | 46′ Non-Hydraulic | 48′ Hydraulic |
| Width | 101″ | 101″ |
| Weight | 15,380 | 18,000 |
| Tires | 235/75 R17.5 | 235/75 R17.5 |
| Standard Features | |
|---|---|
| SLIDING AIR RIDE SUSPENSION | LOW PROFILE TIRES (SIZE: 235/75 R17.5) |
| AIR OPERATED ROLLER PIN LOCK SYSTEM | HYDRAULIC TILT BED * |
| SELF CONTAINED HYDRAULIC POWER UNIT * | WIRELESS 2 BUTTON REMOTE FOR HYDRAULIC PUMP * |
| STRAP WINCHES & PATENTED STRAP LOCKS | SMOOTH DECK PLATE |
| SEALED BALL BEARINGS ON ROLLERS | DUAL REAR GROUND ROLLERS |
| SANDBLASTED, PRIMED, AND POWDER COATED | POWDER COATED OR GALVANIZED ROLLERS |
| LED LIGHTING W/REAR STROBE LIGHTS | 7-WAY RECEPTACLE ON REAR OF TRAILER |
| 2-YEAR WARRANTY | |
| Optional Features | |
|---|---|
| REMOVEABLE HEADACHE RACK (WIDTH: 60", 78", OR 98") | SLIDING WINCH & STRAP LOCK SYSTEM |
| FRAME MOUNTED TOOLBOXES - 36" | FRONT LIFT AXLE |
| PATENTED LOAD LIFTS | OUTER ALUMINUM RIMS |
| FRONT MOUNTED 15K WINCH | TRAFFIC CONE HOLDER AND WHEEL CHALKS SET |
| CUSTOM POWDER COAT COLORS | |
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
