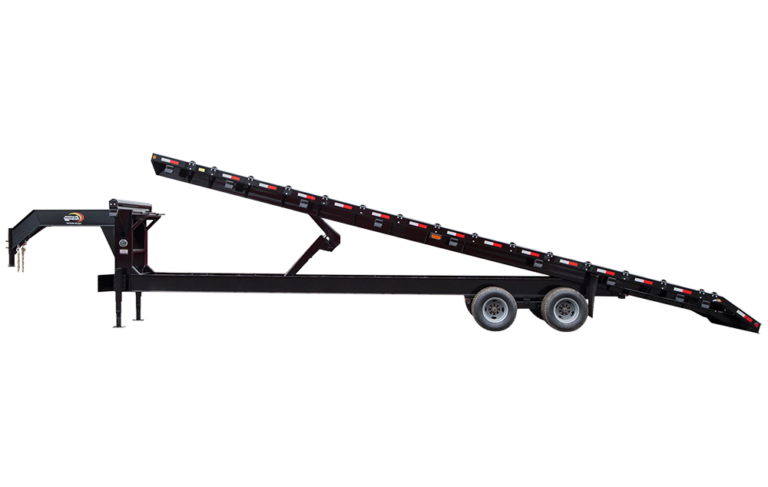

The Gooseneck is designed to be an efficient trailer to deliver loads that don’t require the mobilization of your largest trucks.
| LENGTH | GVW(lbs) | WEIGHT(lbs) | BED HEIGHT | WIDTH |
|---|---|---|---|---|
| 26' | 25,500 | 9150 | 40" | 101" |
| 32' | 25,500 | 9,500 | 40" | 101" |
| 36' | 25,500 | 9,840 | 40" | 101" |
| 40' | 25,500 | 10,500 | 40" | 101" |
| Standard Features | |
|---|---|
| SPRING SUSPENSION | TANDEM 10K AXLES |

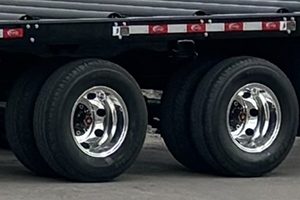

| DUAL TIRES (SIZE: 235/80 R16) | ELECTRIC OVER HYDRAULIC DISK BRAKES |

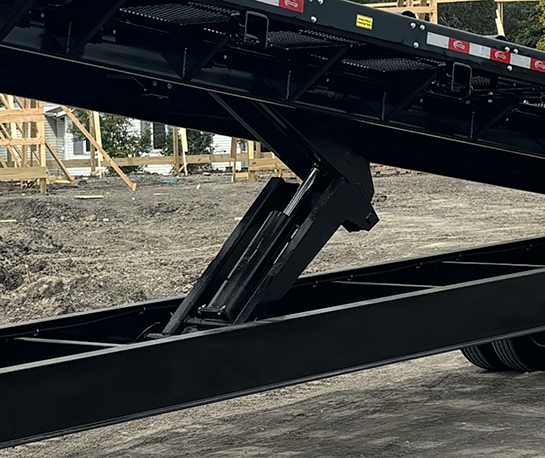

| HYDRAULIC TILT BED | SELF CONTAINED HYDRAULIC POWER UNIT |

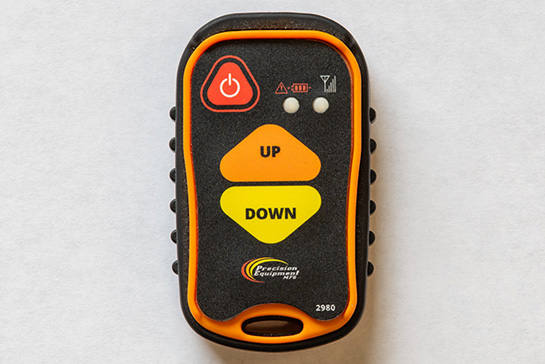

| WIRELESS 2 BUTTON REMOTE FOR HYDRAULIC PUMP | CORDED PENDANT FOR HYDRAULIC PUMP |
| HYDRAULIC OPERATED LOAD CONTROL SYSTЕM | TILTED HAULING CAPABILITY |

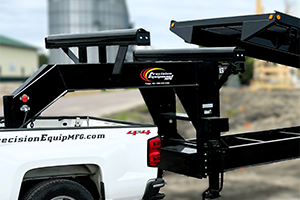

| STRAP WINCHES & PATENTED STRAP LOCKS | ROLLER ON TOP OF GOOSENECK |

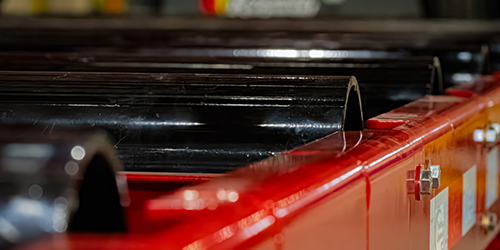

| SEALED BALL BEARINGS ON ROLLERS | MESH BETWEEN ROLLERS |
| SANDBLASTED, PRIMED, AND POWDER COATED | POWDER COATED OR GALVANIZED ROLLERS |
| REAR DOVETAIL FOR SOFT UNLOADING | (2) SPRING LOADED LANDING GEAR |
| LED LIGHTING W/ REAR STROBE LIGHTS | 7-WAY RECEPTACLE ON REAR OF TRAILER |
| 2-YEAR WARRANTY | |
| Optional Features | |
|---|---|
| ADDITIONAL TOP ROLLER ON GOOSENECK | 12K AXLES |
| OUTER ALUMINUM RIMS | SPLIT DECK ROLLERS |
| 5TH WHEEL COUPLER | CUSTOM POWDER COAT COLORS |
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
