Standard
Extendable
Gooseneck
HD Roller Bed
Step Deck
The Standard trailer’s air ride suspension, sliding axle, and in-cab hydraulic operation systems make it an excellent option for delivering the essential resources your customers need.
| LENGTH | GVW(lbs) | WEIGHT(lbs) | BED HEIGHT | WIDTH |
|---|---|---|---|---|
| 40' | 68,000 | 15,500 | 59" | 101" |
| 48' | 68,000 | 17,500 | 59" | 101" |
| 53' | 68,000 | 17,900 | 59" | 101" |
| Standard Features | |
|---|---|
| SLIDING AIR RIDE SUSPENSION | LOW PROFILE TIRES (SIZE: 255/70 R22.5) |

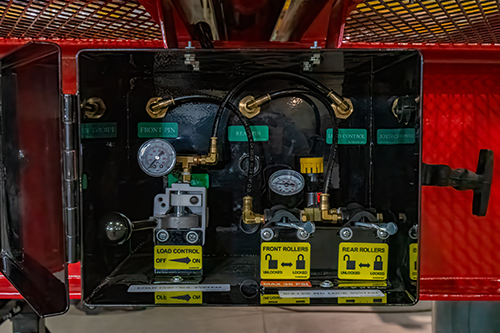

| AIR OPERATED ROLLER PIN LOCK SYSTEM | AIR OPERATED LOAD CONTROL SYSTEM |

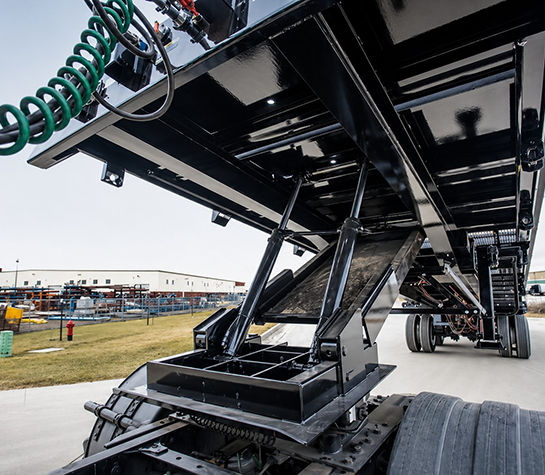

| AIR OPERATED LIFT BUMPER | HYDRAULIC TILT BED |

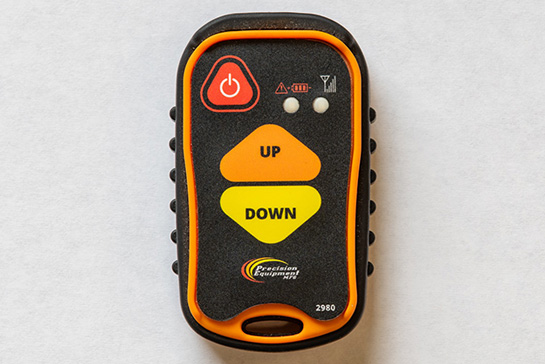

| SELF CONTAINED HYDRAULIC POWER UNIT | WIRELESS 2 BUTTON REMOTE FOR HYDRAULIC PUMP |
| CORDED PENDANT FOR HYDRAULIC PUMP | STRAP WINCHES & PATENTED STRAP LOCKS |
| SEALED BALL BEARINGS ON ROLLERS | MESH BETWEEN ROLLERS |
| DUAL REAR GROUND ROLLERS | SPRING LOADED COMPOSITE FENDERS |
| LED LIGHTING W/ REAR STROBE LIGHTS | 7-WAY RECEPTACLE ON REAR OF TRAILER |
| SANDBLASTED, PRIMED, AND POWDER COATED | POWDER COATED OR GALVANIZED ROLLERS |
| 2-YEAR WARRANTY | |
| Optional Features | |
|---|---|
| REMOVEABLE HEADACHE RACK (WIDTH: 60", 78", OR 98") | TOOLBOX: 18" X 18" X 36" |
| SLIDING WINCH & STRAP LOCK SYSTEM | WIRELESS FULL FUNCTION REMOTE |
| FRONT LIFT AXLE (NOT AVAILABLE ON 40') | OUTER ALUMINUM RIMS |
| FRONT MOUNTED 15K WINCH | PATENTED LOAD LIFTS |
| TRAFFIC CONE HOLDER AND WHEEL CHALKS SET | CUSTOM POWDER COAT COLORS |
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
