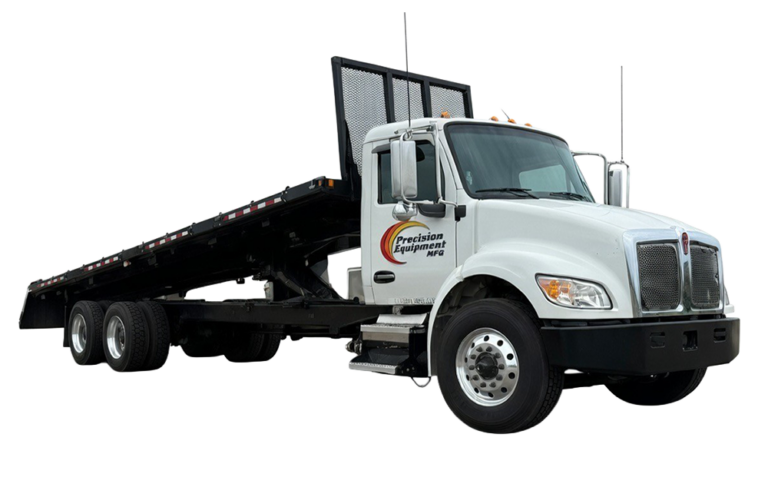

The Heavy-Duty Roller Bed will attach to virtually any Medium or Heavy-Duty extended truck frame. Manufactured using the same parts and processes as our truss trailers, you can count on this being a dependable long-lasting investment to add to your fleet. Easily transport trusses and other building materials to jobsites not accessible with longer trailers.
| LENGTH | GVW(lbs) | WEIGHT(lbs) | BED HEIGHT | WIDTH |
|---|---|---|---|---|
| 26' | NA | 7,500 | 40" | 101" |
| 28' | NA | 8,000 | 40" | 101" |
| 30' | NA | 8,250 | 40" | 101" |
| 32' | NA | 8,500 | 40" | 101" |
| Standard Features | |
|---|---|

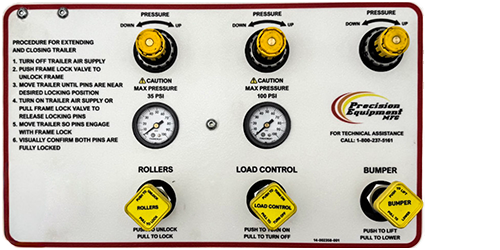

| AIR OPERATED ROLLER PIN LOCK SYSTEM | AIR OPERATED LOAD CONTROL SYSTEM |

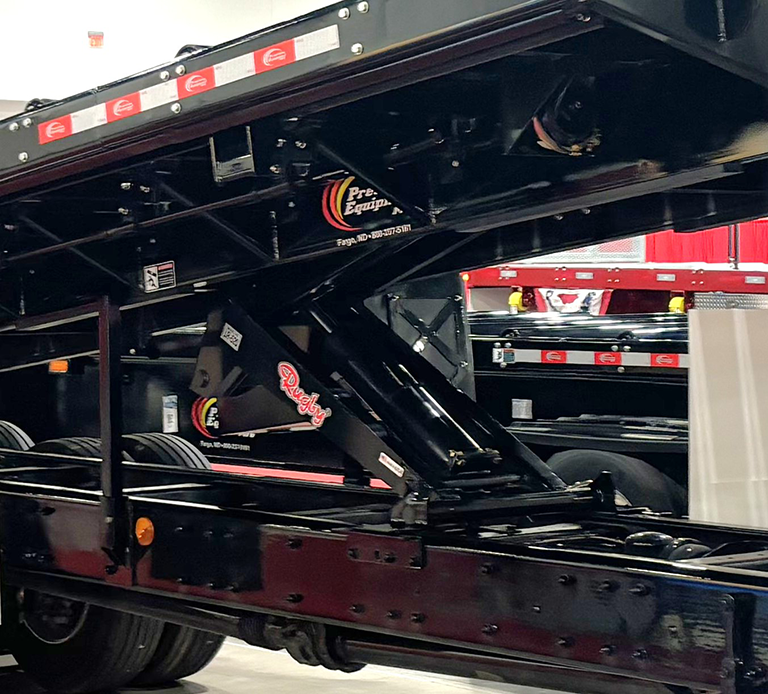

| HYDRAULIC TILT BED | SELF CONTAINED HYDRAULIC POWER UNIT |

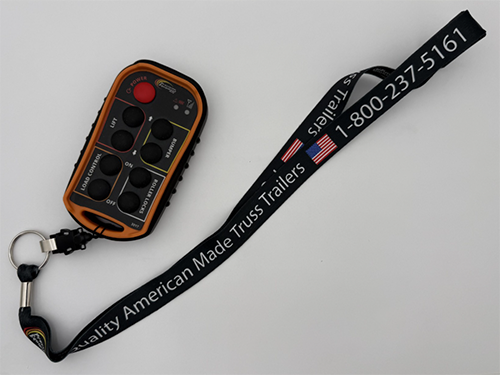

| CORDED PENDANT FOR HYDRAULIC PUMP | 8 BUTTON FULL FUNCTION WIRELESS REMOTE CONTROL |
| HEADACHE RACK (78” W X 50” H) | SLIDING WINCH & STRAP LOCK SYSTEM |

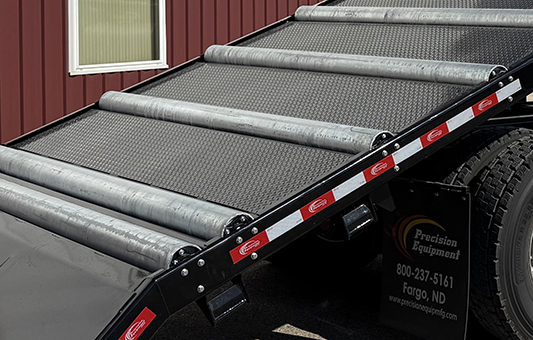

| DIAMOND PLATE DECKING BETWEEN ROLLERS | REAR DOVE TAIL FOR SOFT UNLOADING |
| SEALED BALL BEARINGS ON ROLLERS | LED LIGHTING W/ REAR STROBE LIGHTS |
| SANDBLASTED, PRIMED, AND POWDER COATED | POWDER COATED OR GALVANIZED ROLLERS |
| 2-YEAR WARRANTY | |
| Optional Features | |
|---|---|

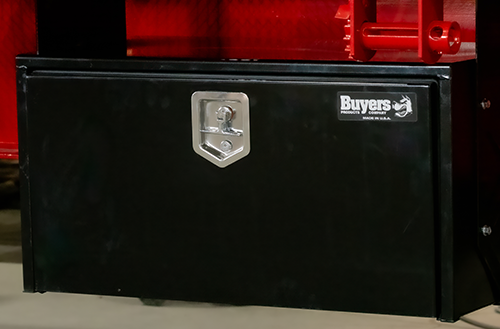

| TOOLBOXES 18” X 18” x (36” or 48” or 72”) | TRAFFIC CONE HOLDER AND WHEEL CHALKS SET |
| CUSTOM POWDER COAT COLORS | |
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
