The Extendable is our stretch truss trailer. It is made to haul large loads, extending for delivery, and collapsing for the trip home.
| LENGTH | GVW(lbs) | WEIGHT(lbs) | BED HEIGHT | WIDTH |
|---|---|---|---|---|
| 38'-53' | 68,000 | 17,500 | 54" | 101" |
| 42'-60' | 68,000 | 19,900 | 54" | 101" |
| 50'-70' | 68,000 | 20,650 | 54" | 101" |
| 53'-80' | 68,000 | 23,000 | 54" | 101" |
| Standard Features | |
|---|---|

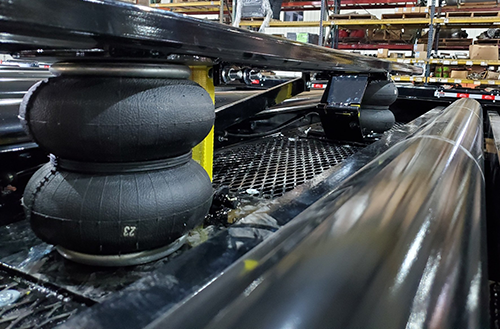

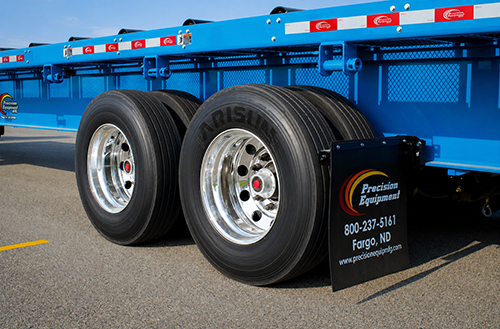

| SLIDING AIR RIDE SUSPENSION | LOW PROFILE TIRES (SIZE: 255/70R 22.5) |

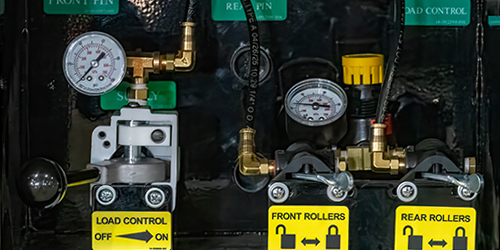

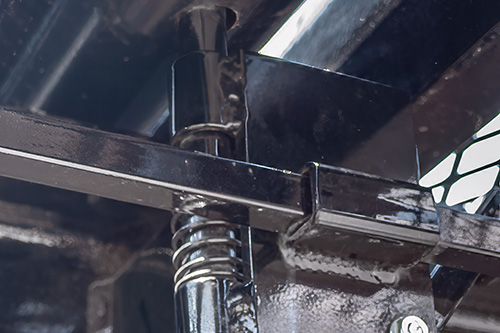

| AIR OPERATED ROLLER PIN LOCK SYSTEM | AIR OPERATED LIFT BUMPER |

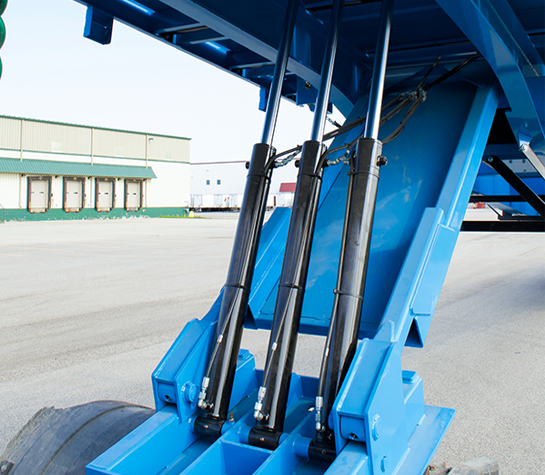

| HYDRAULIC TILT BED | SELF CONTAINED HYDRAULIC POWER UNIT |

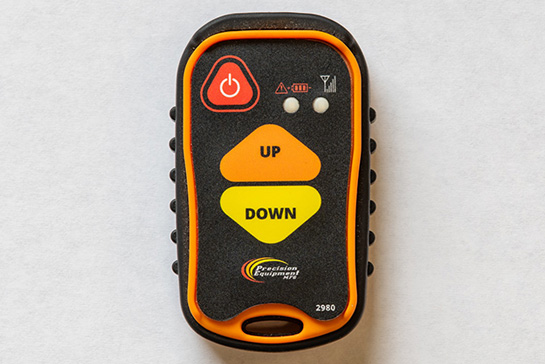

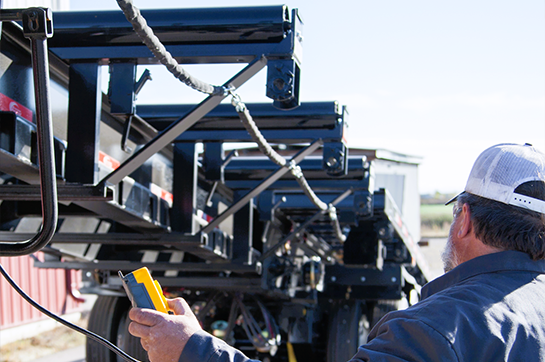

| WIRELESS 2 BUTTON REMOTE FOR HYDRAULIC PUMP | CORDED PENDANT FOR HYDRAULIC PUMP |

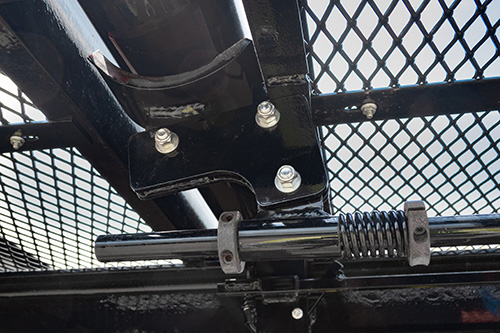

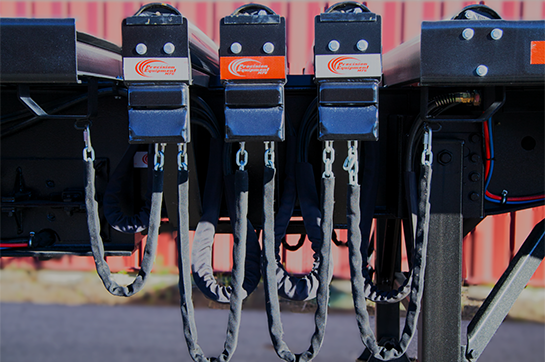

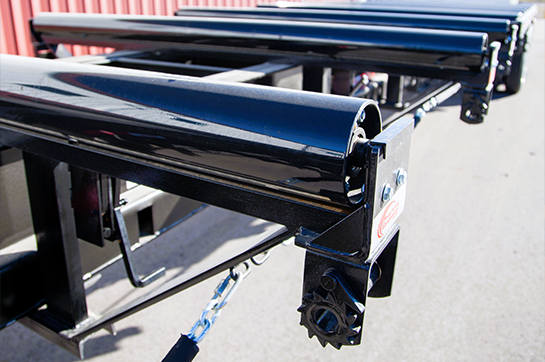

| STRAP WINCHES & PATENTED STRAP LOCKS | 3 INTERMEDIATE ROLLERS (38'-53' & 42'-60') |

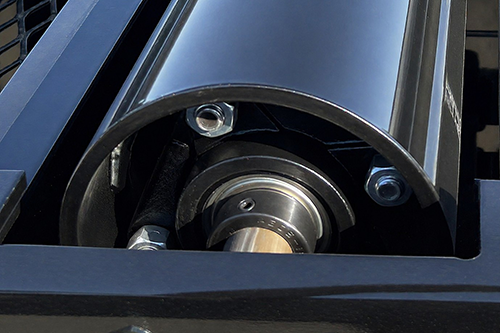

| 4 INTERMEDIATE ROLLERS (50'-70' & 53'-80') | SEALED BALL BEARINGS ON ROLLERS |

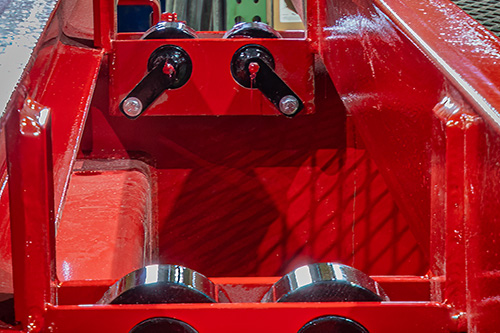

| MESH BETWEEN ROLLERS | DUAL REAR GROUND ROLLERS |
| SPRING LOADED COMPOSITE FENDERS | LED LIGHTING W/ REAR STROBE LIGHTS |

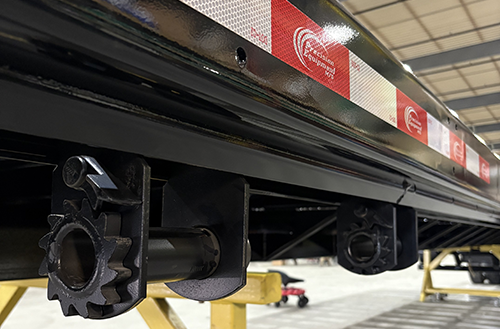

| 7-WAY RECEPTACLE ON REAR OF TRAILER | SANDBLASTED. PRIMED. AND POWDER COATED |

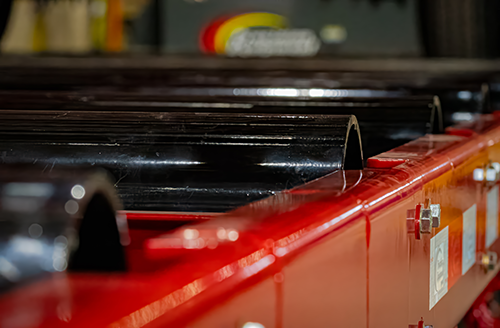

| POWDER COATED OR GALVANIZED ROLLERS | 2-YEAR WARRANTY |
| Optional Features | |
|---|---|

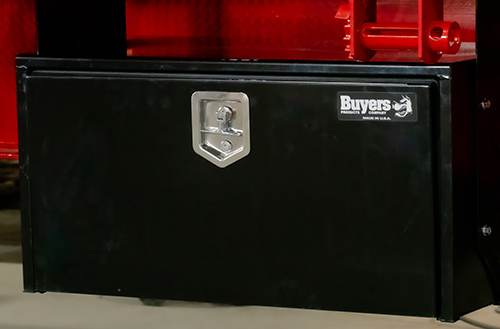

| REMOVEABLE HEADACHE RACK (WIDTH: 60", 78", OR 98") | TOOLBOX: 18" X 18" X 36" (NOT AVAILABLE ON 38'-53') |
| SLIDING WINCH & STRAP LOCK SYSTEM | WIRELESS FULL FUNCTION REMOTE |
| FRONT LIFT AXLE | PATENTED LOAD LIFTS |
| OUTER ALUMINUM RIMS | FRONT MOUNTED 15K WINCH |
| TRAFFIC CONE HOLDER AND WHEEL CHALKS SET | CUSTOM POWDER COAT COLORS |
We have your back if anything with your trailer goes wrong. Not only is our parts department easy to work with, but our warranty covers you for 2 years.
